Examples for the installation

Installation examples

Type L earthing brush for turbine generator service
Visual inspection of the internal brush cartridge after removal.

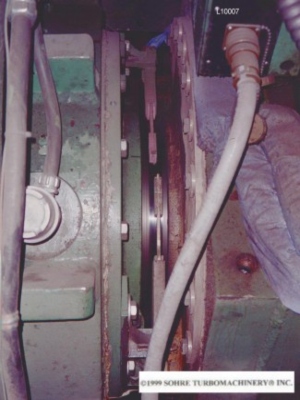

Area of application of a type L earthing brush in the turbine generator
Note: The type of brush mounting flange shown is not standardized but is available from us as an option. Please make sure to specify this when ordering.


Brush installation with two type LW earthing brushes

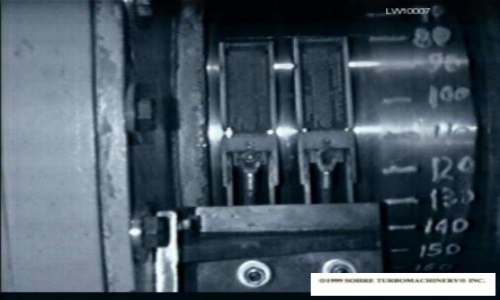

Two earthing brushes type LW are installed next to each other in one area and have therefore been mounted in a "twin" configuration.

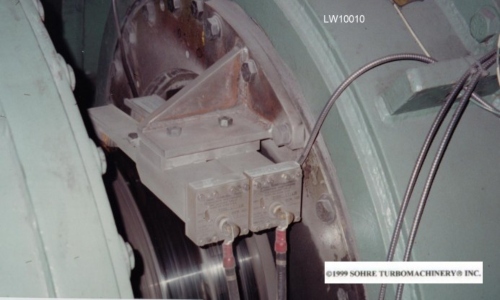

Application example of two LW earthing brushes in the "twin" configuration for turbine generators


Application example of two LW type earthing brushes in the "twin" configuration for turbine generators

Note: Easy maintenance of the brush during operation.

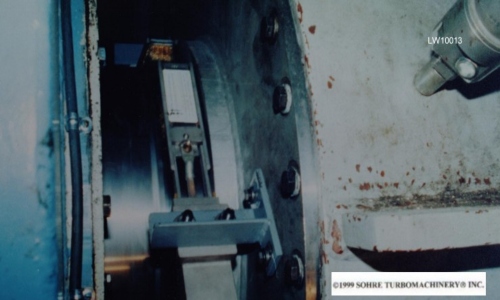

Application example of a type LW earthing brush


Type L earthing brush for turbine generator service

Note: A lifting screw is also used to lift the brush from the shaft.

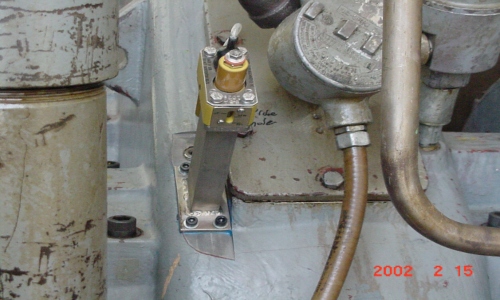

Type A earthing brush mounted on the gearbox housing
Note: The earthing cable was not yet connected.

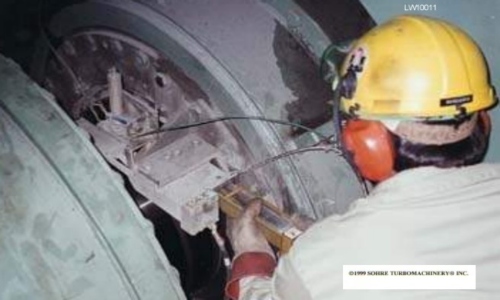

Type L earthing brush during turbine generator service

Note: Remove the internal cassette during operation.
