Mobile demagnetizer MGFE

Mobile demagnetizer MGFE

The mobile magnetic field devices in the MGFE series are versatile systems for magnetizing and demagnetizing ferromagnetic machine parts. Their special feature is the high-precision demagnetization technology in which alternating field sine pulses are used. These pulses generate an efficient magnetic field in specially developed coils.

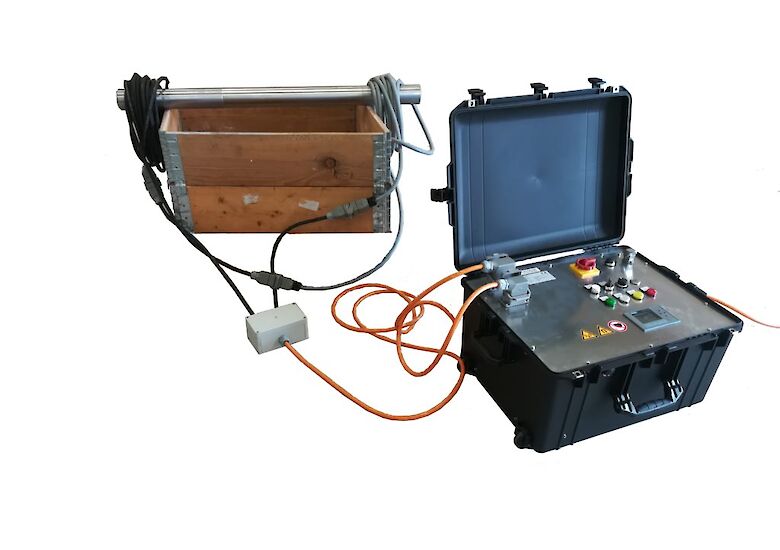

Flexible magnetic field cables are ideal for demagnetizing components or complete machines. These cables can either be wrapped around the parts to be treated or placed as a coil directly on the relevant surfaces. Thanks to the flexible design, even areas that are difficult to access can be reached effortlessly. In addition, several cables can be connected together to increase the overall length, the number of windings and the field strength generated.

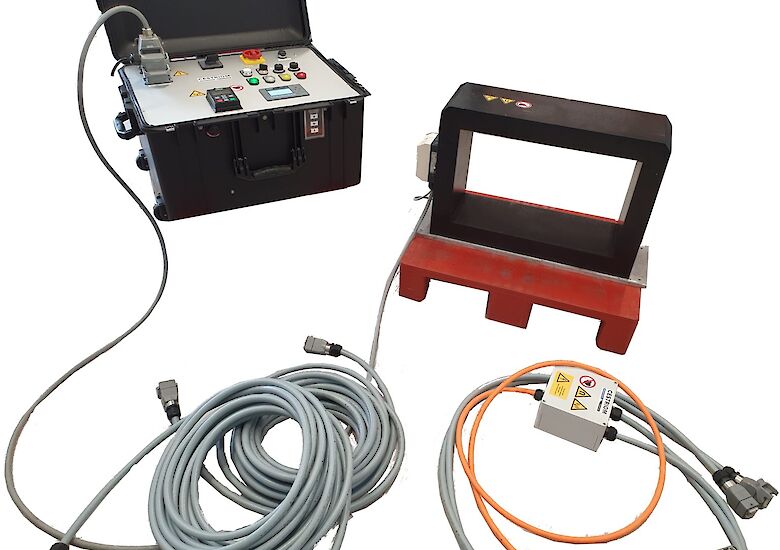

In addition to the flexible magnetic field cables, coils from the SSM series can also be combined with the MGFE devices. For specific requirements, we develop custom-made products on request that are precisely tailored to the required dimensions, field strengths or magnetic field profiles.

We offer comprehensive training to ensure that the MGFE demagnetization system is used efficiently and correctly. This can be carried out either directly on site at the customer's premises or online via video conference. The training usually lasts one to two days and provides all the important knowledge for successful operation.

Thanks to these innovative solutions, MGFE systems set new standards in demagnetization technology and offer maximum flexibility and efficiency.

Technological functions:

1. Demagnetization with low-frequency sinusoidal pulses and controlled field progression: The use of low-frequency sine pulses minimizes the formation of eddy currents, which enables deeper penetration into ferromagnetic material and increases the efficiency of demagnetization.
2. Demagnetization by means of a sine pulse and adaptive frequency control: The progressive increase in frequency in the decay phase of the sine pulse ensures particularly effective demagnetization, especially for small to medium-sized components and on surfaces.
3. Generation of a DC field with variable amplitude and polarity: This function enables a precisely defined magnetic flux and is ideal for magnetizing steel parts.
4. Fine adjustment of magnetic symmetry: This function allows the magnetic field to be precisely adjusted at specific points on a steel part, such as the ends of a steel shaft, in order to achieve optimum results.

Specifications Demagnetizing device MGFE:

• Strong magnetic flux: With a cable winding diameter of 500 mm and up to 30,000 ampere-turns (AWdg) when using four magnetic field cables and the MGFE-70, you can achieve exceptional results. The more compact MGFE-30 achieves an impressive 17,000 AWdg and offers maximum precision.
• Precise demagnetization technology: The state-of-the-art alternating current sine pulse technology ensures optimum demagnetization and penetrates ferromagnetic material particularly efficiently.
• Outstanding repeatability: The exact reproducibility of the current profile and the versatile adjustment options of the field control guarantee reliable results - even in demanding applications.
• Flexible magnetic field cables: Our cables are available in different lengths and cross-sections and can be individually adapted to requirements. Thanks to the variable number of active conductors, they offer maximum flexibility for complex tasks.
• Wide range of coil options: In addition to the magnetic field cables, coils from the SSM series or specially developed custom-made products can also be used to meet the specific requirements of your application.

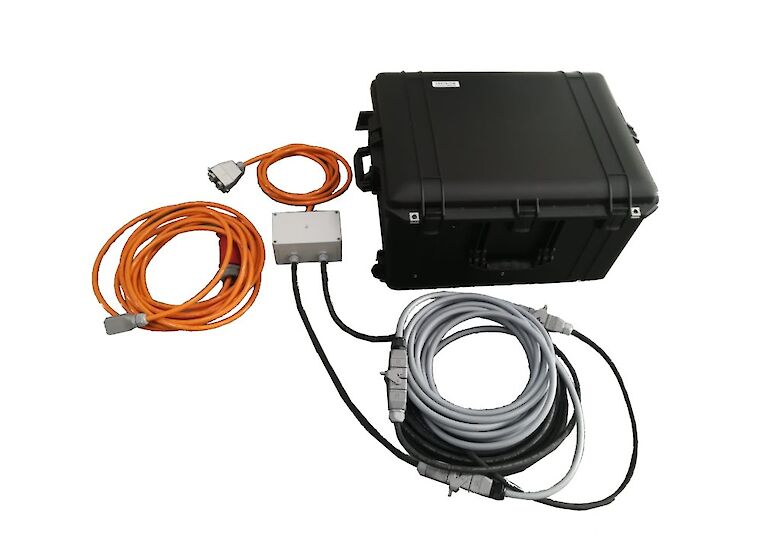

• High mobility: The system is supplied in a robust, impact-resistant plastic case on wheels, allowing easy transportation and flexible use on site.

This combination of performance, precision and mobility makes our MGFE systems the ideal choice for magnetization and demagnetization in industry and technology.

Options:

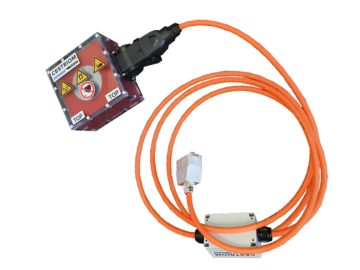

Our high-field impulse coil offers a powerful solution for demagnetizing tool surfaces made of carbide and tool steel. It is connected directly to the MGFE system and is easy to use. Customer-specific variants are also available, which can be individually tailored to your requirements.

Versatile applications for maximum efficiency

1. material testing without damage:
Optimal demagnetization in preparation for non-destructive testing methods such as magnetic particle testing (MT) and eddy current testing (ET) to ensure precise and reliable results.

2. rotating systems:

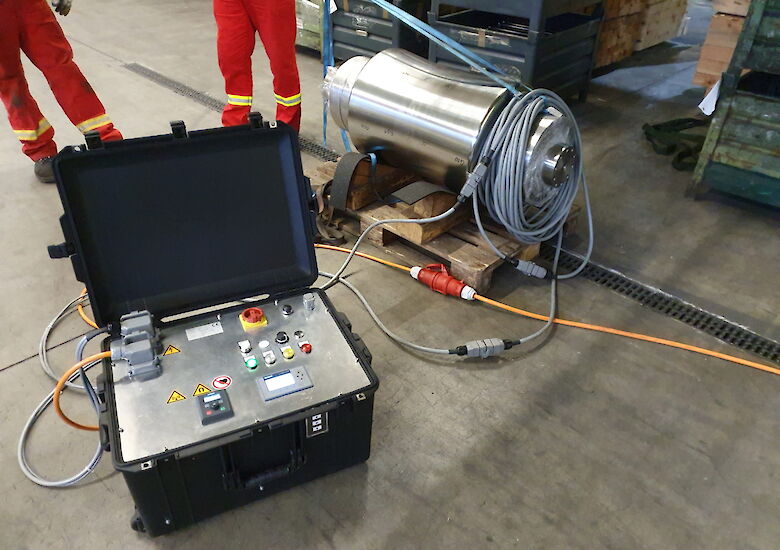

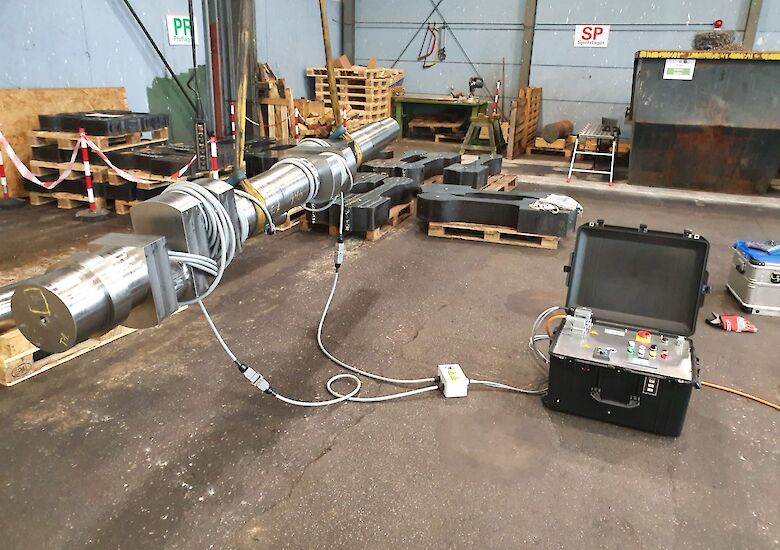

Efficient demagnetization of shafts, bearings, housings and other rotating components. Also ideal for electrical concentricity testing with eddy current methods. Demagnetization reduces induced shaft voltages and ensures improved performance and safety.

3. mechanical engineering and tool manufacturing:
Perfect solution for demagnetizing tools, machine parts and other important components in machine and tool manufacturing.

4. steel trade and supply industry:
Demagnetization of steel products to comply with the limit values for residual magnetism - a decisive step for quality and safety in further processing.

5 Welding preparation:

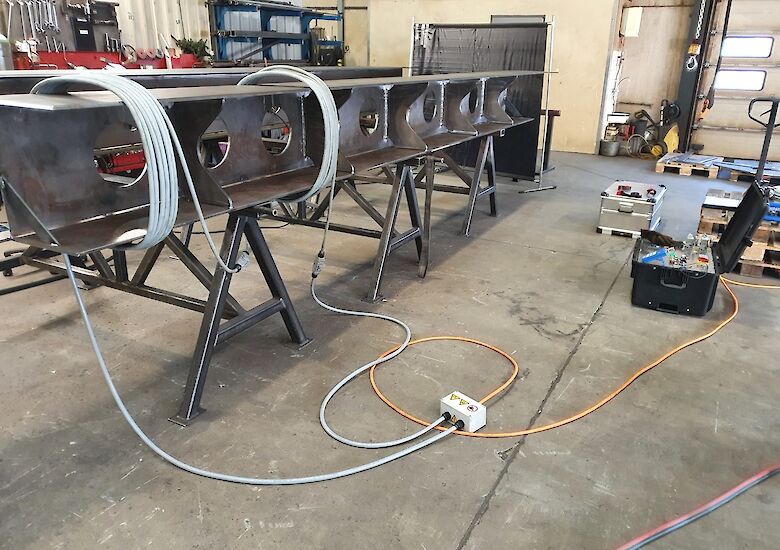

Professional demagnetization to prepare materials before welding. This minimizes undesirable influences from magnetism and improves welding quality.

6. research and development (R&D):
Support for special applications and innovative projects that require specific demagnetization solutions.

Why our solutions?

Our systems offer a combination of high performance, adaptability and precision that enables reliable demagnetization in a wide range of industries. With optimized technologies and tailor-made options, we meet the most demanding requirements - and set new standards for efficiency and quality.
