Industrial demagnetizers

Industrial demagnetizers

Our demagnetization systems are based on a modular system of demagnetization coils (SSM) and power modules (LM). Thanks to this flexible design, the systems can be optimally adapted to different requirements. They support both the pulse process and the continuous process. In special cases, both processes can even be combined, for example in the continuous pulse process, in which parts are continuously fed through the system and simultaneously demagnetized by pulses.

Customizable modules for individual requirements

The power modules and demagnetizing coils are available in various sizes (see tables below for details). If no standard size fits, we are happy to develop customized solutions that are precisely tailored to your requirements.

Typical areas of application

Our modular demagnetization systems can be used for a wide range of applications, including the following:

  • Demagnetization before cleaning: Parts in transport or washing baskets
  • Preparation for test procedures: Components before eddy current testing
  • Compliance with residual magnetism limits: components during production
  • Tools and clamping parts: Also for carbide in toolmaking
  • Semi-finished products for incoming and outgoing goods: Ensuring magnetic neutrality

Universal and economical solution

These industrial demagnetizers are not only suitable for special fields of application, but are also an ideal choice for companies looking for an economical and universally applicable demagnetizing machine for toolmaking, maintenance or production.

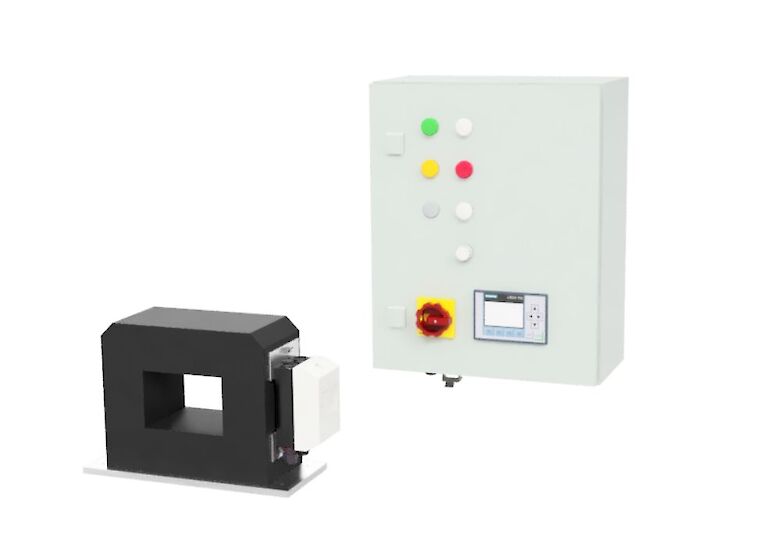

Demagnetizer LM14 + SSM03

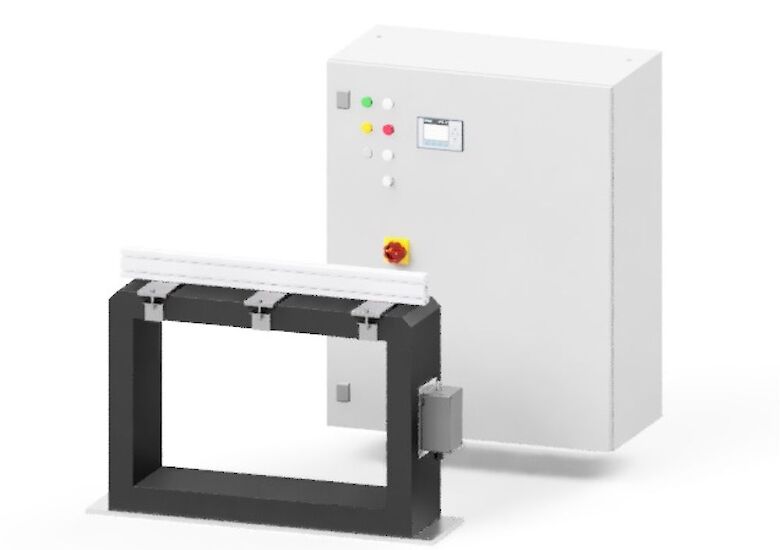

LM120 power module with SSM-Sonder demagnetizing coil

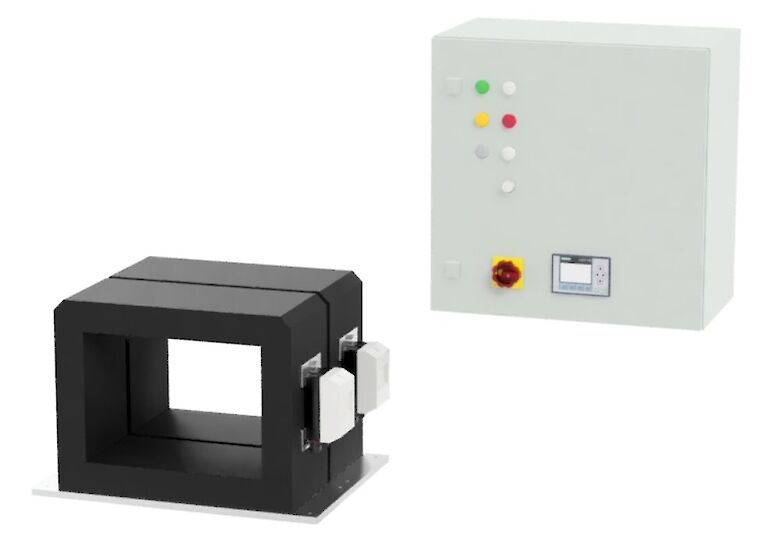

Double coil demagnetizer LM68 + 2x SSM11

Demagnetizing coils:

The copper windings of the demagnetizing coils are designed to ensure maximum field strength combined with a long service life. The coils are fully encapsulated, offer reliable electrical insulation and are protected against overheating with integrated temperature monitoring. The connection to the power module is made via cables that can be individually adapted to the required length.

Technical data:

Demag. coil Active area (1) WxH xD [mm] Dimension WxH xD [mm] Power module (2)
SSM03 150×100 x130 408×282 x170 LM14…LM20
SSM04 250×250 x160 510×405 x200 LM14…LM47
SSM05 250×350 x210 510×505 x250 LM20…LM68
SSM06 260×130 x145 520×315 x185 LM14…LM47
SSM07 350×300 x210 610×455 x250 LM20…LM68
SSM08 350×450 x210 610×605 x250 LM25…LM68
SSM09 400×200 x210 660×355 x250 LM25…LM68
SSM10 400×400 x210 660×555 x250 LM25…LM68
SSM11 420×300 x210 680×455 x250 LM25…LM68
SSM12 550×550 x210 810×705 x250 LM38…LM68
SSM13 560×350 x210 820×505 x250 LM38…LM68
SSM14 710×550 x210 970×705 x250 LM38…LM68

(1) The effective range defines the useful volume of the coil enclosed by the copper winding. The dimension BxH corresponds to the passage of the coil.

(2) Power module matching a demagnetizing coil as standard. Other combinations on request.

The performance data (field strength, frequency, demagnetization process, etc.) of the systems are optimally determined on a project-specific basis.

Power modules:

The power modules contain all the essential components for generating the controlled alternating current required to operate the coils. To ensure long-term availability of spare parts, we rely exclusively on hardware from renowned electronics manufacturers. The electrical design, the development of the PLC programs and the precise parameterization of the power electronics are core competencies of Cestriom GmbH.

Our power modules are characterized by their easy maintenance and high availability. All relevant settings and parameters are stored completely digitally. This enables maintenance personnel to restore the demagnetizer's target status independently and easily after replacing core components. The control concept also supports modern remote maintenance solutions via the internet.

The modules are designed for both manual and automatic operation. In automatic mode, communication takes place via isolated 24V signals as standard; other communication options are available on request. The demagnetization parameters are controlled by the integrated controller and can be flexibly adjusted within a wide range if required.

Technical data:

Power module Electrical connection Dimension WxH xD [mm]
LM14…LM20 200…240VAC 50/60Hz, 16A 400×500 x210
LM25…LM68 3×380…480VAC 50/60Hz, 16…32A 600×600 x350
LM90…LM120 3×380…480VAC 50/60Hz, 32…63A 800x1000x400
Other on request
  • Options on request

Examples:

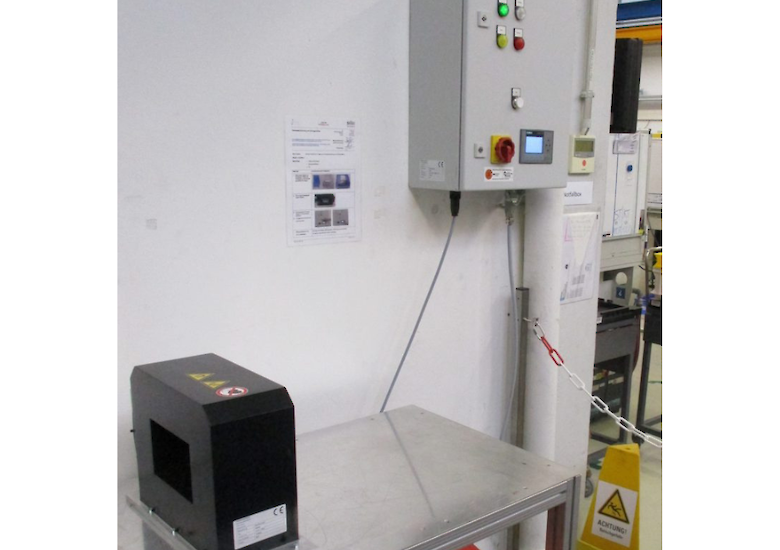

LM14 with SSM03 coil for manual demagnetization of bulk parts.

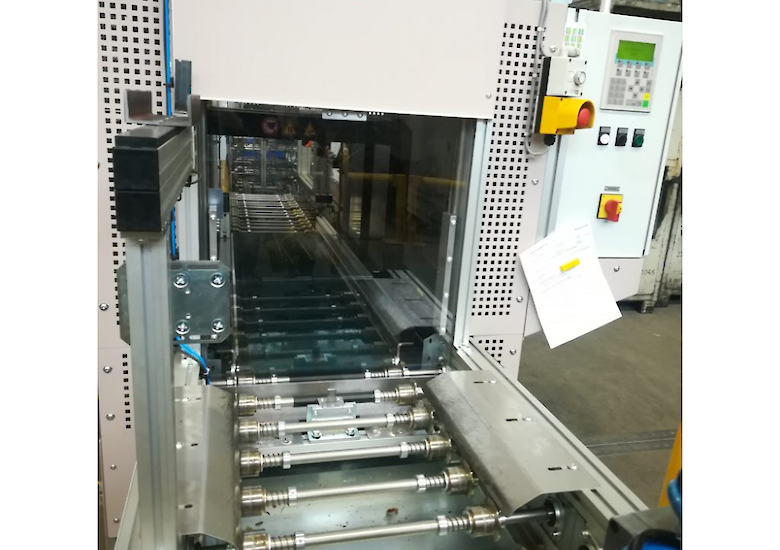

LM68 with 2x SSM12 in Helmholtz arrangement for demagnetizing parts in washing baskets upstream of a cleaning system. Automation implemented by a third-party company.

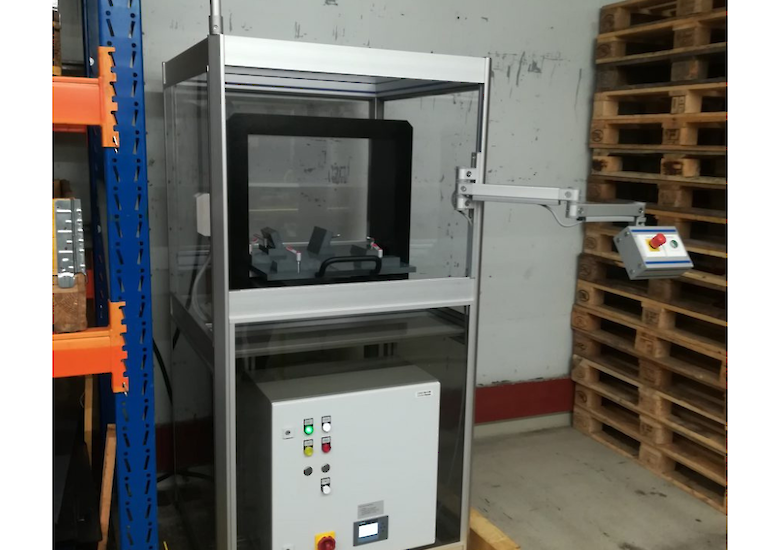

LM68 with SSM12 coil for demagnetizing steel parts of different dimensions. Customer realization of the housing.
