Demagnetization in a continuous process: Efficient solution for industrial production

In industrial production, there are often applications where demagnetization in a continuous process is required to ensure the continuous flow of parts. This process is based on the parts being guided through a constant alternating field within a demagnetization coil. Demagnetization takes place by gradually increasing the distance from the field source.

Manual and automated processes

Demagnetization in the continuous process can either be carried out manually by hand or - as is common today - with the help of automation systems.

Limits and alternatives in demagnetization

Continuous coils (DS), which are operated at a mains frequency of 50/60 Hz, reach their limits in certain applications:

  • Material properties: limited effect on steel with large wall thickness or high coercive field strength (e.g. hard steel).
  • Multi-part demagnetization: Limitations when demagnetizing parts in product carriers or bulk goods.

In such cases, controlled demagnetizers are a powerful alternative. They offer more precise and effective demagnetization, especially for demanding materials and applications.

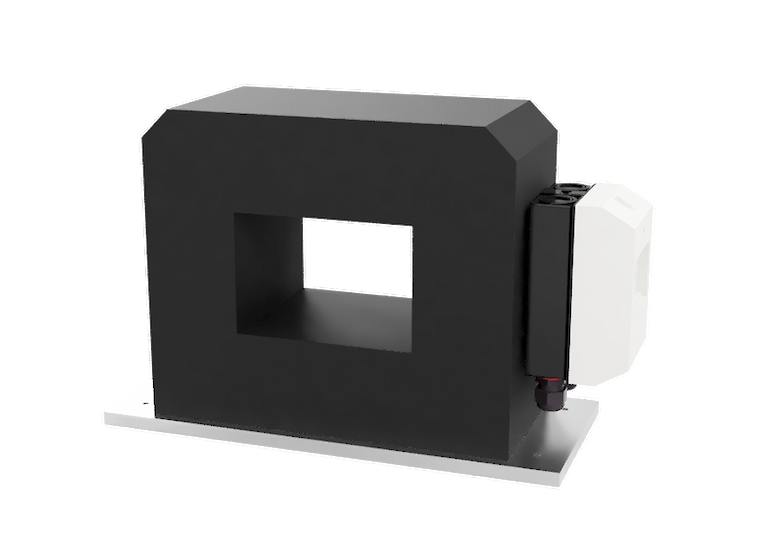

Continuous tunnel coil DS03

Examples of use Demagnetization tunnel in throughfeed. Demagnetization of:

  • Small parts with thin walls
  • Sheet metal parts with a wall thickness of up to a few millimeters
  • Rods or tubes with thin walls
  • Endless strands of parts on conveyor belts

Technical data:

DS Connection (1) Effective range WxH xD [mm] (2) Field strength [kA/m] (3)
DS03 230/277V 50/60Hz 150×100 x130 26
DS04 230/277V 50/60Hz 250×250 x160 22
DS05 230/277V 50/60Hz 250×350 x210 18
DS06 230/277V 50/60Hz 260×130 x145 30
DS07 230/277V 50/60Hz 350×300 x210 18
DS08 230/277V 50/60Hz 350×450 x210 17
DS09 230/277V 50/60Hz 400×200 x210 26
DS10 400/480V 50/60Hz 400×400 x210 18

(1) With a reduced duty cycle of approx. 30%, it is possible to connect a 230/277VAC coil to 400/480VAC to increase the field strength.

(2) The dimension WxH corresponds to the opening of the coil.

(3) Maximum field strength (peak value) at 100% duty cycle.
