Demagnetizer

Demagnetizer

The mobile magnetic field devices in the MGFE series offer versatile solutions for the precise demagnetization of ferromagnetic components. With innovative alternating field sine pulse technology, supported by specially developed coils and stray field devices, they enable efficient demagnetization. Stray field demagnetizers are ideal for flat objects, while flexible magnetic field cables can reach even hard-to-access areas and can be adapted by connecting several cables. Combinable with SSM coils and also available as custom-made products on request, the systems offer maximum adaptability.

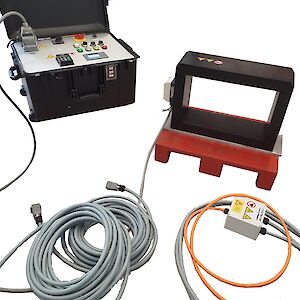

Mobile demagnetizer MGFE

The mobile magnetic field devices in the MGFE series are versatile systems for magnetizing and demagnetizing ferromagnetic machine parts. Their special feature is the high-precision demagnetization technology in which alternating field sine pulses are used. These pulses generate an efficient magnetic field in specially developed coils. Flexible magnetic field cables are ideal for demagnetizing components or complete machines.

Stray field demagnetizer

Stray field demagnetizers with flux-regulating cores are ideal for demagnetizing a wide variety of materials. They are often referred to as plate, table or surface demagnetizers and are particularly suitable for flat objects. Demagnetization is carried out by a stray field that is generated via the core. Two pole plates serve as flux amplification cores, whereby the stray flux is optimally bundled in the area of the pole gap. How does the stray field technology work?

50/60Hz continuous tunnel coils

Demagnetization in a continuous process: Efficient solution for industrial production … In industrial production, there are often applications where demagnetization in a continuous process is required to ensure the continuous flow of parts. This process is based on the parts being guided through a constant alternating field within a demagnetization coil. Demagnetization takes place by gradually increasing the distance from the field source.

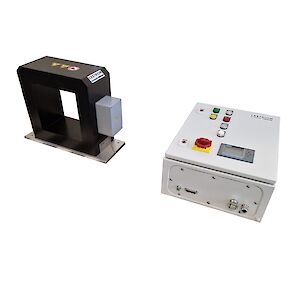

Industrial demagnetizers

Our demagnetization systems are based on a modular system of demagnetization coils (SSM) and power modules (LM). Thanks to this flexible design, the systems can be optimally adapted to different requirements. They support both the pulse process and the continuous process. In special cases, both processes can even be combined, for example in the continuous pulse process, in which parts are continuously fed through the system and simultaneously demagnetized by pulses.

Special systems for demagnetization

Special requirements sometimes call for solutions that cannot be covered by the standard range. In such cases, special systems can be developed. The following are examples of realized projects: • Demagnetization of automotive parts … • Air-cooled high-performance coil … • Measurement of process values and process monitoring … • Communication via ProfiNET … • LM68-Sonder power module (not visible in photo) integrated in the customer's control cabinet
