SHAFT Turbomachinery
Products and services
Many years of experience in providing special products for rotating machines.
Industries
Specific solutions for the requirements of the petrochemical, power generation and marine industries as well as other industrial sectors.
Products
Grounding Brushes
Shaft Turbomachinery Solutions Europe supplies high performance and highly reliable SOHRE bristle fiber grounding brushes for use in shaft earthing of all types of stray electrical currents.
The brushes can also be used for the transmission of instrument signals and for online diagnostics of generators or electric motors. SOHRE has continuously improved the earthing brushes and incorporated decades of experience.
Demagnetizer

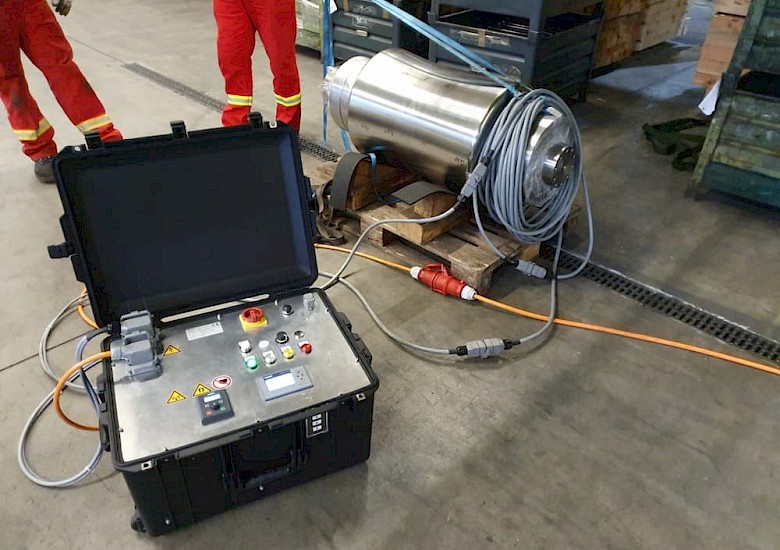

The mobile magnetic field devices in the MGFE series offer versatile solutions for the precise demagnetization of ferromagnetic components. With innovative alternating field sine pulse technology, supported by specially developed coils and stray field devices, they enable efficient demagnetization. Stray field demagnetizers are ideal for flat objects, while flexible magnetic field cables can reach even hard-to-access areas and can be adapted by connecting several cables. Combinable with SSM coils and also available as custom-made products on request, the systems offer maximum adaptability.
HCP technology
From the rolling bearing to the sensor. HCP-LubSecure prevents bearing damage through lubrication monitoring. HCP-Surface offers a simple solution for measuring the forces acting in the machine directly at the point of action. In addition to force measurement and lubrication monitoring, the sensor technology from HCP Sense also offers the possibility of detecting rolling bearing damage at an early stage and tracking its progress.
Shaft Turbomachinery Solutions Europe GmbH
Shaft Turbomachinery Solutions EU® is a market leader and pioneer in the field of shaft currents in rotating machinery.
Shaft Turbomachinery Solutions EU® is a company operating throughout Europe in the field of turbomachinery. Our field of activity is the distribution of grounding solutions for shaft stray currents in rotating machines. For this purpose, we provide various products in our portfolio that ensure that the effects of electrostatic and electromagnetic induced stray currents are reduced.
First and foremost, we sell earthing brushes and replacement brushes for rotating machines and turbomachinery. We also offer HCP technology and demagnetization.
426+
Companies around the world that use our products
Protection of turbomachinery against shaft currents
One of the main problems that we combat with our products is shaft currents. These are caused by electrical charges on the shaft and can cause considerable damage to turbomachinery through spark discharges. This leads to material erosion, failures and very high costs.
We offer a proven solution with shaft earthing brushes made of silver and gold fibers. These ensure reliable contact, low resistance and operate with minimal wear - significantly better than conventional graphite or carbon brushes.
With over 10,000 brushes installed worldwide, Sohre brushes are the ideal choice for long-lasting protection and minimal maintenance.
About us
About Shaft Turbomachinery
Shaft Turbomachinery Solutions Europe offers high performance and highly reliable bristle fiber brushes that are used as shaft grounding for any kind of electrical shaft stray currents. Furthermore, the brushes can also be used for the transmission of instrument signals and online diagnostic work for generators or electric motors.
In addition to the proven earthing products, we offer services such as demagnetization of parts and machines as well as on-site measurements and investigations to identify the causes of electrical shaft currents.
Services
Demagnetization service
Shaft Turbomachinery Solutions offers demagnetization of products and machines in addition to its tried and tested grounding solutions. We will be happy to advise you to find the right demagnetization solution for you.
Measurement of electrical wave currents
By working with Sohre Turbomachinery, we have experienced personnel available to conduct comprehensive on-site surveys to identify areas of potential concern and risk. In return, we provide our recommendations and expertise on smooth machine operation to mitigate current and future problems by determining if electromagnetic or electrostatic sources are present.
Prevention
Solving the shaft flow problem is crucial for all turbomachinery applications.
Publications, scientific articles, case studies and technical information
Publication No. 20
"Electromagnetic Shaft Currents and Demagnetization on Rotors of Turbines and Compressors" (J. S. Sohre & Paul I. Nippes, 1978, 21 pages)
Publication No. 23
"Are Magnetic Currents Destroying Your Machinery?" (J. S. Sohre, 1979, 6 pages)
Publication No. 24
"Electromagnetic Shaft Currents in Turbomachinery - An Update" (J. S. Sohre & Paul I. Nippes, 1980, 48 pages)
Industries
The industrial products from Shaft Turbomachinery Solutions Europe are used, for example, in the petrochemical industry, power plant technology, alternative energy generation and other civil and non-civil sectors. In particular, they protect turbines, generators, compressors, motors, gearboxes, expanders, etc., even under the most difficult conditions.
Our replacement brushes
SRP-A-11R2
SRP-L-11-SLT
SRP-S-11
Safety as a high priority
It is important to observe and follow basic safety precautions when operating a brush in high speed environments, confined spaces or chemically aggressive atmospheres. The precautions and procedures required will depend on the application.
